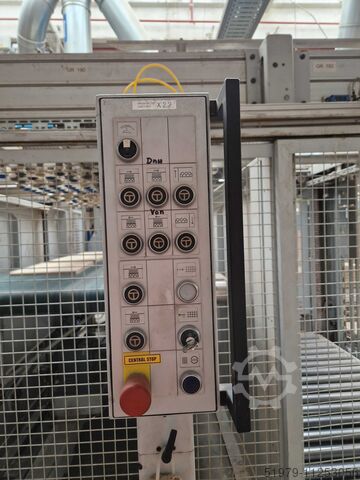

Stacking / Destacking device

HOMAG BARGSTEDT TBH22/D/25/12

Condition: excellent (used), DOUBLE LOADER, (DOUBLE CAGE) CE mark Composed of 2 single loaders (one at right and the other at left of the central rollers table) - Motorized rollers table (between the two single loaders) - Built-in electric cabinet and PLC command panel - Total installed power KW 16 General features of each loader: - Vacuum system - Top holding bars deplacement of 180° (horizontal sliding movement) Cob E Id Aobgcggjwegt - Horizontal bars for the vacuum cups supporting - In-side lifting table, surface with motorized-rollers - Front-side sliding door (metal grid door) Working capacity (cycles/minute) 15 ca. Workpieces thickness (min/max) mm 12 - 60 Minimal workpieces dimensions mm 240 x 240 Maximal workpieces dimensions mm 1200 x 3000 Total installed powe Kw 16 x 2

Condition: used, Year of construction: 2008, Functionality: fully functional, machine/vehicle number: 0-202-21-6404, -Technical specifications of the KFL 526 - Continuously adjustable feed rate 15-40 m/min (optionally up to 50 m/min) - Up to 40 m/min for thin edges up to 0.6 mm - Up to 30 m/min for thick edges up to 3 mm - Fixed workpiece overhang 30 mm - Workpiece thickness 12-40 mm - Working height to the top of the chain 950 mm - Working width double-sided min. 220 mm to max. 2500 mm Cjb E Iowgl Nded Awogt - Workpiece length in front of the cam max. 1200 mm - Edge material roll 0.3-3 mm - Max. edge cross-section for PVC 135 mm², for veneer 100 mm² - Roll diameter max. 830 mm - Pneumatic connection 7-8 bar + PROFI TBL100/25/20 (HOMAG feeding and Stacking) - Technical Specifications - 3-compartment pallet magazine - No machine stop during pallet changes - Infinite stacking patterns possible - Data connection to the edge processing system - Automatic return after the first pass - Semi-automated (1 machine operator required) - Workpiece length min. 250 mm to max. 2500 mm for TBL 10025/.. - Workpiece width min. 220 mm to max. 2000 mm for TBL100/ /20 - Roller diameter 64 mm - Roller guide approx. 120 mm - Feed rate continuously adjustable 7-40 m/min - Working height 950 mm +/- 50 mm - Pneumatic connection 7-8 bar

Condition: used, machine/vehicle number: 007903, Max. panel width: 2000 mm Cgeb E Id Aewdug Towot Max. panel length: 2500 mm Max. forward feed speed: 40 m/min

Condition: used, Automatic double cell loader without pit that can be used in line Motorized panel introduction transfers Double automatic panel loading station Suction cup system for panel handling Panel detacher Panels can also be processed in double rows Useful panel width 1300 mm Useful panel length 2500 mm Vacuum pump Motorized transfers for introducing panel stacks Automatic motorized adjustment by numerical control of the horizontal suction cup support bars Programming and control system TECHNICAL DETAILS TO BE VERIFIED Ceb E Idewf N Hqj Awogt

Condition: used, Year of construction: 2018, Working dimension X: 3.050 mm Working dimension Y: 1.250 mm Working dimension Z: 80 mm Independent Z-axes: 2 HOMAG Split-Head: Yes Number of milling spindles: 1 Ceb Eovg Riqo Id Awsgt Main motor power: 10 kW Rotation speed max: 24.000 rpm Tool clamping system: HSK-F63 Tool changer positions: 4 Vertical drilling spindles: 20 Horizontal drilling spindles in X: 12 Horizontal drilling spindles in Y: 4 Groove saw: 90° turnable Vertical working surface: Yes Machine table: Feed-through technology Special workpiece clamping system: clamp gripper Outfeed: Workpiece return Dowel insertion: Yes Glue system: PVAc Safety device: enclosed cabin Control: Homag powerTouch HOMAG - Uninterruptible power supply: Yes HOMAG Plausibility check: Yes Control cabinet cooling: Yes Software: HOMAG WOODWOP 7.1 Conformity marking: CE mark

Condition: ready for operation (used), Year of construction: 2002, This HOMAG Optimat KF 26/8/A3/25 edgebander was manufactured in 2002. Ideal for precise edgebanding tasks, it ensures consistent performance for woodworking projects. Consider the opportunity to buy this HOMAG Optimat KF 26/8/A3/25 edgebander. Contact us for more information. Ceb E Iswctyced Awegt Application Types Edge Banding

Condition: excellent (used), Double side - Independent Machine (or 1st and/or 2nd in a line) Edges (band in rolls) thickness (Min/Max) mm 0,3 / 3 Panels thickness (min/max) mm 8 / 40 Working width (min/max) mm 225 / 2500 Numerical Control PC 22 /Software WoodCommander Adjustable feeding speed (m/min) 15 - 40 Safety and sound-proof enclosures/cabins Distance (center-axes) of the Disappearing Dogs (mm) 1000 SIZING PART (for each side): Anti-chipping Milling Unit (1 x Kw 4,5) Hogging Units KD 11 (2 x Kw 6,6) Milling Unit (vertical Joint Trimmers) UF 20/S2 (2 x Kw 4) EDGE-BANDING PART (for each side): Glueing Unit "ZERO JOINT" SCHUGOMA Kantenking (Option: EVA glue/ PU glue) Edge coils support (No 2 reels) Band Pressure zone (adjustable by N.C.) Type A Snipping (end-cutting) HL 84 (2 x kW 0,22), speed 25 m/min Rough Trimming unit BF10 (2 x kW 0,55) Multi Function Unit (Profile contour Trimming unit) FK11 (2 x kW 0,4) Profile edge scraping unit (Multi-profile, adjustable by N.C.) MN 21 Finish processing unit (Glue scraper + Buffing unit) FA 11. Spraying Unit (for polishing liquid) Cgob E Isuhv R Djd Awet No. 2 Milling grooving unit SF20 (2 x kW 6,6) Motorised panel infeed roller conveyor, with panel identification system "HOMAG" Mod. POWER TBL 100/20/25

Condition: ready for operation (used), Year of construction: 2002, Functionality: fully functional, machine/vehicle number: 0-202-99-9999, working width: 2,500 mm, workpiece height (max.): 55 mm, total length: 9,500 mm, pass-through width: 2,550 mm, edge thickness (max.): 3 mm, type of input current: three-phase, HOMAG OPTIMAT KF 26 Double-sided sizing and edge banding machine Working width min/max. 230/2550 mm Workpiece thickness (min/max): 8 mm / 55 mm (with profile milling 40 mm) Cam pitch: 1000 mm Insertion length in front of cam: 1160 mm Electronic width and height adjustment Adjustable infeed guide Pneumatic alignment in front of cam counter-holding device Outfeed intermediate conveyor with rubberized chain, length (approx.) 1000 mm Equipment (left and right identical): Csb E Ijv Sxtuod Awegt - Compact double cutting unit with controlled up-cutting milling - QA34 Quick-Melt gluing units with pre-melters - 6-position edge magazine with change function - Pressure zone with NC axis for pre-selecting edge thickness - HL 81/83 trimming unit (feed rate up to 28 m/min) Chamfer trimming can be finely adjusted via screen/input unit - Pre-milling top/bottom - Profile milling FK 13 top/bottom (corner rounding) with 8-station tool changer, milling heads with iSystem - Universal milling unit 4 kW with insert control - Multi-profile scraper unit MN 21 top/bottom with NC axis infeed - Flat (glue joint) scraper unit FA 10 (3 tracer rollers) - Buffing unit top/bottom with oscillation HOMATIC NC 21 control system All machining motors are driven by electronic frequency converters. Length of the KF 26 machining center: approx. 9.5 m Availability of the system: from June 2025 Professional disassembly of the system can be offered separately.

Condition: used, machine/vehicle number: 005983, Position 1: Double Squaring Machines HOMAG-NFL 25/4/10 Cgsb Esiiiz Hj Id Awst Position 2: Roller Conveyors HOMAG-NFL 25/4/10 Position 3: Double Squaring Machines HOMAG-NFL 25/4/10

Condition: used, Numerical control POWER CONTROL PC 22 Machine suitable for 1st + 2nd passage of the panel Mobile shoulder opening motorized by C.N. mm 2500 Maximum panel height mm 60 PVC-ABS edge thickness mm 3 Feed speed m/min 40 Feed speed with rounders m/min 20 Motorized rubberized pressure belt Belt with bearings with retractable pins (distance between pins mm 500) Squaring part composed of (for each side): Anti-adhesive group Automatic timed anti-splinter group Double shredder group Free space for possible addition of group Edging part composed of (for each side) Gluing group with pre-melting unit and glue tank Automatic adjustment of edge pressure rollers Edge holder magazine with n° 2 positions Two-motor trimming group Overlapping trimming group FK rounding group 0-90° tiltable Tupi group (moving side) Group edge scraper Glue scraper group Brush group Anti-adhesive group Ceb E Id Aov Ipilowsgt

Condition: used, Year of construction: 2022, Working dimension X: 3.050 mm Working dimension Y: 1.250 mm Working dimension Z: 80 mm Number of milling spindles: 1 Main motor power: 10 kW Rotation speed max: 24.000 rpm Tool clamping system: HSK-F63 Tool changer positions: 4 Vertical drilling spindles: 15 Horizontal drilling spindles in X: 6 Cob E Iswa Skbed Awsgt Horizontal drilling spindles in Y: 4 Groove saw: 90° turnable, Top and bottom Vertical working surface: Yes Machine table: Feed-through technology Special workpiece clamping system: clamp gripper Barcode reader: Yes Dowel insertion: Yes Dowel diameter: 8 mm Dowel length max: 40 mm Safety device: enclosed cabin Milling for fittings: Lamello Clamex Interface for .dxf data: Yes Control: Homag powerTouch, HOMAG POWER CONTROL Software: HOMAG WOODWOP, HOMAG tapio ready, HOMAG WOODWOP 8.0 Declaration of CE-conformity: Yes Conformity marking: CE mark Total connection: 18 kW Weight: 3.975 kg Space requirement Length: 4,8 m Space requirement Width: 2,4 m Space requirement Height: 2,5 m

Condition: ready for operation (used), Year of construction: 2003, This HOMAG WEEKE PROFI KFL20/29/QA/25 edgebander was manufactured in 2003. Consider the opportunity to buy this HOMAG WEEKE PROFI KFL20/29/QA/25 edgebander. Contact us for further details. Application Types Edge Banding Cob E Idov Nb A Tj Awjgt

Condition: excellent (used), Double side - Independent Machine (or 1st and/or 2nd in a line) Edges (band in rolls) thickness (Min/Max) mm 0,3 / 3 Panels thickness (min/max) mm 12 / 40 Working width (min/max) mm 225 / 2500 Cgeb Eov Rpdnj Id Awjt Numerical Control POWERCONTROL PC23 Power Touch /Software WoodCommander Adjustable feeding speed (m/min) 15 - 40 Distance (center-axes) of the Disappearing Dogs (mm) 1000 Working line (work units support tables), manual adjustment mm 30 – 80 SIZING PART (for each side): Anti-chipping Milling Unit (1 x Kw 4,5) Hogging Units KD 11 (2 x Kw 6,6) + Free Space EDGE-BANDING PART (for each side): Glueing Unit (Hot Melt + Quick Melt Unit) A3 + QA65 Edge coils support (No 2 reels) Band Pressure zone (adjustable by N.C.) Type A Snipping (end-cutting) HL PK30 (2 x kW 0,8), speed 30 m/min Rough Trimming unit BF20 (2 x kW 0,55) Multi Function Unit (Profile contour Trimming unit) FF30 + FF32 (4 x kW 0,4) with FlexTrim Free Space Profile edge scraping unit PN 20 Finish processing unit (Glue scraper + Buffing unit) FA 21. Spraying Unit (for polishing liquid) No. 3 Milling grooving unit SF20 (1 x Left + 2 x Right) (3 x kW 6,6) (N.C. adjustment)

Condition: used, machine/vehicle number: 006082, Max. panel width: 1200 mm Max. panel length: 3000 mm Rotation system: double cone Cgeb E Id Aewaymwjwet Rotation direction: from long to transverse

Condition: ready for operation (used), Year of construction: 2003, Additional Equipment Glue Part A20 Strip: Max processing strip goods 20 mm, roll goods 3 mm / Trimming Unit HL 05 Bevel/Straight: Motors 0.4 kW each, 12000 rpm / Buffing Unit Top and Bottom: Motors 0.25 kW each Stepless Vertical and Horizontal Axes / Belt Grinding Unit KS 10: For grinding straight edges / Chamfer/Radius Grinding Unit Top PS 42 & Bottom PS 41: Motor 0.55 kW Cgebov Eh R Ne E Id Awjt This configuration ensures efficient processing of various materials with versatile trimming, milling, and grinding options. This 4-axis HOMAG PROFI KFL20/29/QA/25 was manufactured in 2003. Ideal for efficient edge banding, this double-sided edgebander represents a robust solution for woodworking needs. Consider the opportunity to buy this HOMAG PROFI KFL20/29/QA/25 double sided edgebander. Contact us for more information. Application Types Edge Banding

Condition: excellent (used), TURNING DEVICE FOR PANELS (LONGITUDINAL TO CROSS) Equipment to be placed between two Double End Tenoners (or two double-side Combination machines) in a line (straight position) or before an independent Double End Tenoner (or double-side Combination - Sizing & Edge Banding machine) To turn at 90° panels (workpieces) from longitudinal sense (lenghtwise) to cross sense (crosswise) Built-in electric and command panel Total length mm 6200 1st Table (longitudinal) with motorized rollers mm 1300 x 3200 (ca.) Motorized turning device, with double cone (1 top + 1 bottom) 2nd Table (cross) with motorized rollers mm 2500 x 3000 (ca.) Min dimensions of the panels mm 195 x 250 Max dimensions of the panels mm 1200 x 2500 Min/Max panels thickness mm 12 - 40 Cobsd Siydj E Id Awogt Total installed motor power Kw 3

Condition: used, machine/vehicle number: 006387, Type of edging: Thin edge, Thick edge Gluing System: PUR Cgjb E Id Aom Aupfjwet Corner Rounding Unit: yes Combination Squaring Edgebanding Machine: First and Second Pass Max Panel Width: 2500 mm Max feed speed: 40 m/min Operating Units Right Side: 12 nr Operating Units Left Side: 12 nr

Condition: excellent (used), C.N.C. WORKING CENTER (POINT TO POINT) 5 axis (DRIVE 5C +) Gantry-drive (axe X) machine Numerical Control Control (PC85) Software woodWOP Safety cabin (enclosure) of the working head Working table with pods and rails Mod. K-Table Support rails (No.) 10 Table dimensions (mm) 1250 Clamps for workpieces fixing - Pneumatic Kit powerClamp-clamping element - K Table Automatic Tools Changing System Tools storage plate (No. of folds-positions) 14 Cgeb Esnzhwhe Id Awot Max. useful working area (X - Y - Z) mm 6175 x max mm 1550 x mm 300 N° 2 Working areas - Vacuum pump (capacity m3/h) 2 x 100 Separate electric and command cabinet Motorized carpet to evacuate chips and wastes. Total installed power (50 A) WORKING GROUPS (TOP): N° 9 Independent vertical boring spindles (High Speed 7500) N° 4 Independent horizontal boring spindles (No.2 in X-axe + No. 2 in Y-axe) Drilling head motor-power (Kw) 1,5 N° 1 Vertical electro-spindles HSKF63 DRIVE 5C +. Vertical electro-spindles motor power (KW 10)

Condition: used, machine/vehicle number: 006079, Max. panel width: 1200 mm Cgjb E Id Aju N Slvowjt Max. panel length: 3200 mm

Condition: excellent (used), AUTOMATIC MULTI-BORER "WEEKE" In line with another machine possible Numerical Control Power Control Software WoodWop (TOPDRILL BST 500) Through-feed motorized transport belts (No.) 2 (with adjustable speed) Horizontal units/supports (No.) 2 Drilling heads/Blocks for each horizontal unit (No.) 2 Spindles for each horizontal drilling head (No.) 11 Max. working width (mm) 3000 Min. working width (mm) 250 Bottom vertical units/supports (No.) 6 Cgsb E Ioh Ryhnsd Awet Drilling heads/blocks for each bottom vertical unit (No.) 2 Spindles for each drill head of the bottom vertical supports (No.) Various Top vertical units/supports (No.) 2 Drilling heads/block for each top vertical unit (No.) 2 Spindles for each drill head of the top vertical supports (No.) Vertical top pressure clamps (No.) 6 Transport belt to evacute chips (wastes) Quota (axes) digital display Total installed power (Kw) 26

Condition: used, machine/vehicle number: 006043, Max. panel width: 1250 mm Max. panel length: 2700 mm Cob E Ideii Sh Ns Awsgt Length of conveyor: 10500 mm Panel return for edgebander: Left

Condition: good (used), Independent machine (standing alone) and/or Universal machine (First & Second in a line) Numerical Control Power Control 22, Software WoodCommander (Windows) Safety and sound-proof enclosure No. 2+2 Vertical columns to support the working units Min. useful working width (mm) 155 Max. useful working width (mm) 2500 Min. useful working tickness (mm) 12 Max. useful working tickness (mm) 60 Max. depth of the panel for automatic infeed (mm) 1200 Distance between center-axes of the disappearing dogs (mm) 500 Adjustable (min/max) feeding speed (m/min) 10 - 30 No. 4 Working groups (for each machine's side): 1 Vertical milling Unit (Anti-chipping) 1 x Kw 4,5 2 Hogging Units (KD 11) 2 x Kw 6,6 Csbedh Tfks E Id Awogt 1 Fine trimming unit (0°-25°) 2 x Kw 0,4

Condition: used, machine/vehicle number: 006064, Squaring: First and Second Pass Max Panel Thickness: 85 mm Max feed speed: 26 m/min Cgob E Id Aolw A D Tjwjt Distance between dogs: 1000 mm

Condition: refurbished (used), Numerical Control Type Power Control Professional Software woodWOP / TopDrill BST No. 2 Through-feed motorized conveyoring belts (4 x Kw ?) No. 2 Horizontal units/supports (with Digital quota/axes display) No. 1 Drilling head for each horizontal unit (1 x Kw 1,5) No. 21 Splindles for each horizontal drilling head Max. working width (mm) 2500 Min. working width (mm) 250 No. 4 Bottom vertical units/supports (with Digital quota/axes display) No. 2 Drilling heads/blocks for each bottom vertical unit (2 x Kw 1,5) Miscellanous Spindles for each drilling head of the bottom vertical supports No. 2 Top vertical units/supports (with Digital quota/axes display) No. 2 Drilling heads/blocks for each top vertical unit (2 x Kw 1,5) Miscellanous Spindles for each drilling head of the top vertical supports Cebedz Uk Ts E Id Awegt No. 4 Vertical top pressure clamps Motorized carpet to evacuate chips and wastes Total installed power (Kw) 36

Condition: used, machine/vehicle number: 006462, Max. panel width: 1200 mm Max. panel length: 2500 mm Cgob Esvyvgzs Id Awst Max. panel stack height from the ground: 1600 mm Lifting capacity: 50 Kg Work capacity: 18 Cycles/min Movement system: suction cups.
