Edm sinking

AGIE Hyperspark 2HS

Condition: used, Year of construction: 2007, Functionality: fully functional, machine/vehicle number: 399, travel distance X-axis: 350 mm, travel distance Y-axis: 250 mm, travel distance Z-axis: 350 mm, workpiece weight (max.): 400 kg, total height: 2,603 mm, total width: 1,855 mm, total length: 2,689 mm, Machine is still in use. Travel: 350x250x350 Year of manufacture: 2007 See pictures for further technical specifications. Remarks: - The price does NOT include any accessories! - Pickup by buyer, from the site. - Pickup date will be agreed upon by the seller. - No warranty. Fsb Hax Njwcduks Hopg - Advance payment (invoice) or cash upon pickup.

Condition: good (used), Year of construction: 2004, table width: 450 mm, table length: 600 mm, overall weight: 6,000 kg, controller manufacturer: AGIEVISION, CONTROLS .. AGIEVISION Fpjb Hajwhaudex N Heg TECHNICAL SPECIFICATION .. Table-size length: 600 mm .. Table-size width: 450 mm .. Adjustment of x-axis: 350 mm .. Adjustment of y-axis: 250 mm ELECTRICAL SPECIFICATIONS .. mains voltage: 400 V .. mains frequency: 50 Hz DIMENSIONS / WEIGHTS .. total weight approx.: 6000 kg Regular service by AGIE Operating hours: 122'829h Eroding hours: 23'101h SW disks available

Condition: good (used), Year of construction: 2004, Machine is in very good condition. Parts shown by hand not come. Fob Hax Novkuqto Hjpg

Condition: used, Year of construction: 2007, Diesinking / EDM Travel distance X: 350 mm Travel distanceY :250 mm Travel distance z: 350 mm table size X: 600 mm Fsb Hax Novt Syke Hspg table size Y: 450 mm max. workpiece size X: 650 mm max. workpiece size Y: 420 mm max. workpiece size Z: 250 mm max. workpiece weight: 400 kg cooler

Condition: good (used), Year of construction: 2005, Functionality: fully functional, workpiece weight (max.): 800 kg, travel distance X-axis: 500 mm, travel distance Y-axis: 350 mm, travel distance Z-axis: 500 mm, rotational speed (max.): 60 rpm, TECHNICAL DETAILS Travel X/Y/Z axes: 500 x 350 x 500 mm Max. workpiece dimensions (width x depth x height): 880 x 680 x 350 mm Max. workpiece weight: 800 kg Workpiece area Work tank type: Automatic lowering tank Internal tank dimensions: 1,090 x 730 x 490 mm Bath height: 0 - 390 mm Machine table Clamping surface: Grid plate with 50 mm hole grid Programmed brake position: yes Dimensions: 800 x 600 Integrated C-axis Indexing and rotation: Interpolation with X, Y and Z as well as spiral machining Speed: 60 rpm Max. working current: 72 A Electrode changer Automatic: integrated Electrode weight: 100 kg Generator Type: AGIE IPG "Intelligent Power Generation" Best surface roughness Ra: 0.1 µm Dielectric unit Loading volume: 620 l Filter quality: 4 cartridges with 8 filter elements Cooling system: water/air heat exchanger Temperature control: ± 1 °C automatic MACHINE DETAILS System dimensions: 2,855 x 2,135 x 2,965 mm Fjb Hax Nevuqxbs Hopg Distance floor - clamping height: 884 mm Net weight: approx. 3,900 kg Gross weight: approx. 5,500 kg Cooling System: water/air cooler for generator, control and dielectric Norms and guidelines Standards: Directive 89/336/CEE Electromagnetic compatibility

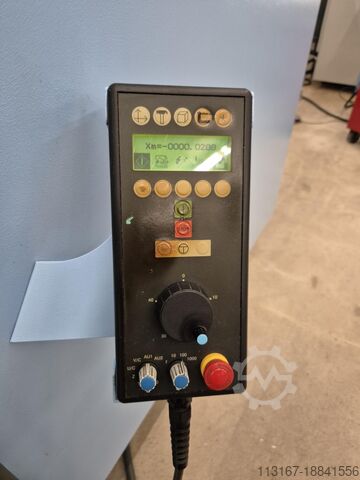

Condition: refurbished (used), Year of construction: 2008, Functionality: fully functional, AGIETRON Hyperspark 2 HS iQ Year of construction 2008 Travel: X = 350 mm, Y = 250 mm, Z = 350 mm; Max. Workpiece dimensions (L x W x H): 650 x 580 x 250 mm Max. Workpiece weight: 400 kg Fpebjut Uzge Hax N Hsg Distance table to quill: 170-520 mm Quill with automatic chuck of your choice (Erowa / 3R Systems); 28-position electrode changer Work bowl can be lowered for optimum accessibility; Incl. C-axis for rotation, indexing and erosion (U=0-60 rpm); AGIE IPG high-performance generator with 72 A Removal rate copper/steel: 550 mm³/min Removal rate graphite/steel: 600 mm³/min Best achievable surface Ra 0.2 µm 15" LCD color screen, lifting keyboard and mouse AGIEJOGGER with LCD display and electronic handwheel Machine weight (net): 3200 kg Machine dimensions (L x W x H): 2689 x 1855 x 2593 mm Incl. 6-month warranty on parts and service; Incl. commissioning and instruction on site; The machine is cleaned, overhauled and tested by us after receipt of the order. We are also happy to commission the machine on your premises. We also offer the following as an option: - transportation - cooler - Dielectric - Clamping device

Condition: ready for operation (used), Year of construction: 2008, Functionality: fully functional, machine/vehicle number: 360, travel distance X-axis: 500 mm, travel distance Y-axis: 350 mm, travel distance Z-axis: 500 mm, workpiece weight (max.): 800 kg, TECHNICAL DETAILS Travel X / Y / Z: 500 / 350 / 500 mm Rotation: 0 - 60 rpm Table dimensions: 800 x 600 mm Automatically lowerable container: 200 - 700 mm Workpiece weight: 800 kg Internal dimensions of work bowl: 1,090 x 730 x 490 mm Fpjb Hajuh Tmisx N Heg MACHINE DETAILS Weight: 5,000 kg Installation dimensions: 3,200 x 2,400 x 2,700 mm Operating voltage: 3 x 400 V Frequency: 50 Hz Connection: 8.3 kVA Rated current: 12 A

Condition: used, table length 400 mm table width 300 mm x-travel 300 mm y-travel 250 mm z-travel 250 mm Fsb Hovwgq Soax N Hepg weight of the machine ca. 1,2 t dimensions of the machine ca. 2000 x 1200 x 2500 mm

Condition: excellent (used), Year of construction: 2015, Wire EDM machine +GF+ AgieCharmilles, very well maintained, regularly serviced machine. Fpob Hax Nsu N Da Ej Heg Control unit: PC technology AC CUT HMI with LCD color screen, touch screen and mouse Electronic manual control panel Technical data: Travel range X 550 mm, Y 350 mm, Z 400 mm Taper +/- 30° / 400 mm Automatic wire threading with wire diameter 0.25 mm Wire reel unit 16 kg Wire processing unit with disposal system Collision protection for all axes Work table: Hardened 4-sided frame table Dimensions 900 mm x 600 mm Workpiece dimensions max. 1,200 mm x 700 mm Workpiece height max. 400 mm Workpiece weight max. 1,500 kg Dielectric: Capacity 1200 l Filter system with 2 paper filters Water conditioner (ion exchange resin) 10 l Temperature monitoring Machine data: Space requirement approx. 2.6 m x 2.6 m x 2.4 m Weight of machine unit (without dielectric) 3,300 kg Power supply: 400 V, 50 Hz, 11 kVA The machine is in very good condition. An inspection under power is possible at any time.

Year of construction: 2011, Condition: good (used), Additional equipement not included. Fpjb Hepxnwzeax N Hsg

Condition: like new (used), Year of construction: 2017, operating hours: 9,830 h, The machine has not been used for several years so we want to sell it. Fpsbjwimu Hj Hax N Hog It is in very good condition.

Year of construction: 1997, Condition: good (used), Agie EDM sinking machine Type: Futura V1PM Mondo star 50 X-travel: 500 mm Y-travel: 350 mm Z-travel: 350 mm Bed: 750 x 550 mm Workpiece weight max: 500 KG Fpsb Heldg Sgjax N Hsg Dimensions workpiece max: 860 x 650 x 315 mm LxWxH Dimensions tub: 1020 x 680 x 400 mm LxWxH Dimensions machine: 195x155x255 cm LxWxH Year: 1997 Included documentation, software and tools

Condition: excellent (used), Year of construction: 2010, Functionality: fully functional, Wire EDM Machine - AGIE CHARMILLES - Robofil 2050 TW Wire - - RS232 / USB / RJ45 / PCMCIA interfaces - Electronic control levers - Bdb7yale - Automatic threading and rethreading (on both wires) - Maximum workpiece dimensions: 1000 x 490 x 260 mm - Maximum weight: 500 kg - X x Y x Z travel: 320 x 220 x 160 mm - U, V axis travel: +/- 48 mm - Maximum clearance angle: +/- 30° - Table dimensions: 600 x 430 mm - Wire diameter: 0.05 - 0.33 mm - Machine dimensions: 2320 x 2310 x h. 2320 mm - Weight: 3,000 kg Fpsb Hax Njwh Skde Heg

Year of construction: 2006, operating hours: 29,783 h, Condition: ready for operation (used), General Data Machine weight 4500 kg Main Drive Number of axis 3 Movement X-Axis Movement 350 mm Y-Axis Movement 250 mm Z-Axis Movement 256 mm Workpiece Workpiece weight 200 kg Additional Equipment Wire System: Wire diameter 0.1-0.33 mm, Wire speed 60-300 mm/s, Wire tension 0-25 N, Wire spool up to 25 kg, Threading system up to 250 mm height, nozzles 1 mm and 2 mm This 3-axis AGIE Challenge 2 eCut wire EDM machine was manufactured in 2006. It offers precision electrical discharge machining capabilities, ideal for detailed and intricate metal work. Consider the opportunity to buy this AGIE Challenge 2 eCut wire EDM machine. Contact us for more information about this machine. Fjb Hswgp S Aoax N Hepg Application Types EDM

Condition: ready for operation (used), Functionality: limited functionality, machine/vehicle number: 009, travel distance X-axis: 420 mm, travel distance Y-axis: 320 mm, travel distance Z-axis: 350 mm, Tool changer; Tank - 900x600 mm Fpsb Haer Iid Eex N Hjg Stroke - 420x320x350 mm

Condition: ready for operation (used), Agie DMC-01B Digital motor control Zch. No. 626074.9, used, minor signs of wear, 100% functional, scope of delivery as per photos Fob Hax Nsi D Tv Do Hspg

Condition: ready for operation (used), AGIE PMO-03 A Power Module Output 616021.2, serial number as per photo, used, good condition, 100% functional, scope of delivery as per photos Febei D Txio Hax N Hjpg

Condition: ready for operation (used), Agie Power module output PMO-01 D 613.930.7 , used, small traces of use, 100% functional Fjb Haxji D Txxs N Hopg

Condition: ready for operation (used), AGIE PRD-02 A2 Process Regulator device 613880.4, serial number as per photo, used, good condition, 100% functional, scope of delivery as per photos Fjbji D Tycj Hax N Hepg

Condition: ready for operation (used), Agie Zch. MJG4022 A 619782.6 , used, normal signs of wear, 100% functional Fjb Haxei D Ty Ij N Hjpg

Condition: ready for operation (used), Agie nal Terminal Blok STB-06 A 621802.8, used, minor signs of wear, 100% functional Fpebji D Ty Ss Hax N Heg

Condition: ready for operation (used), Agie DBE-01 A3 Digital bidirectional expansion Nr. 625854-5 ,used, small traces of use, 100% functional, scope of delivery according to photos Feb Hsi D Tvkjax N Hepg

Condition: ready for operation (used), Agie Digital bidirectional expansion DBE-01 A 625854-5 , used, minor signs of wear, 100% functional Fpebei D Tvvj Hax N Heg

Condition: ready for operation (used), Agie MJG 2119 A Zch 615072.6 + Step motor driver REX MJG 2113 A 629753.5, used, normal signs of wear, 100% functional Fsb Haxsi D Twwe N Hjpg

Condition: ready for operation (used), Agie Power module output PMO-01 B 613.930.7 , used, small traces of use, 100% functional Fpob Haxoi D Txuo N Hjg
